ABC! WLED ESP32-P4 shield

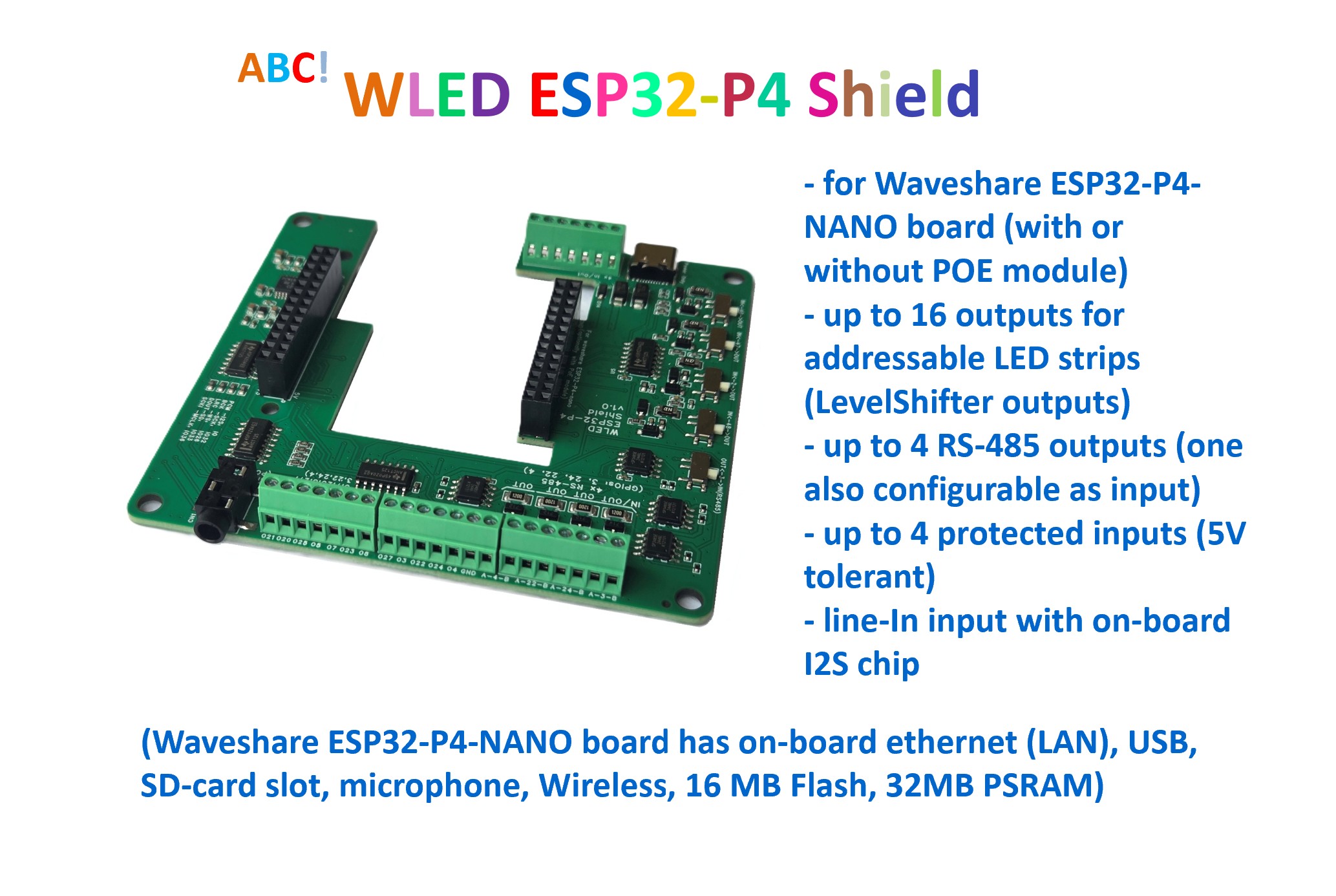

Description of the WLED ESP32-P4 shield:

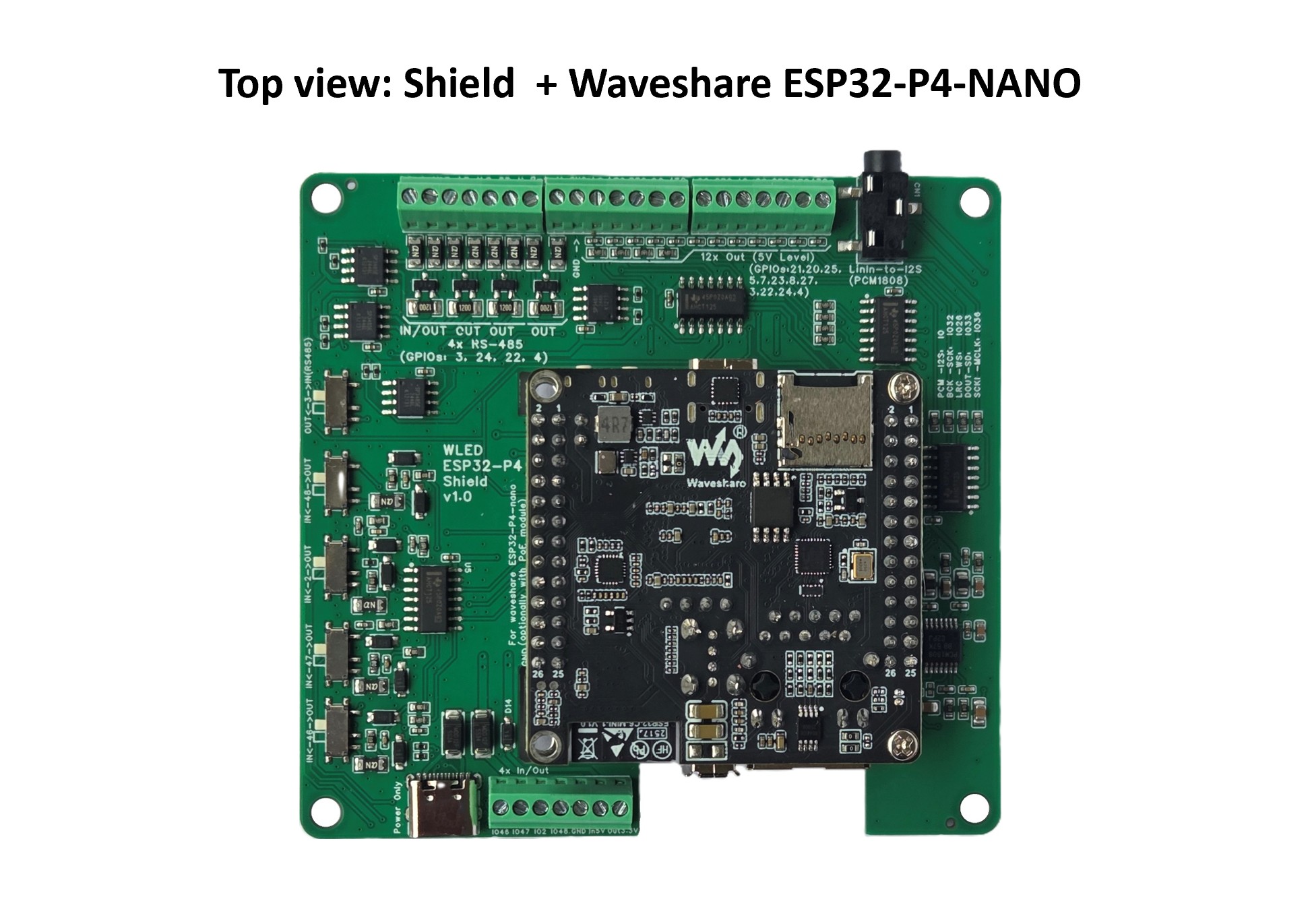

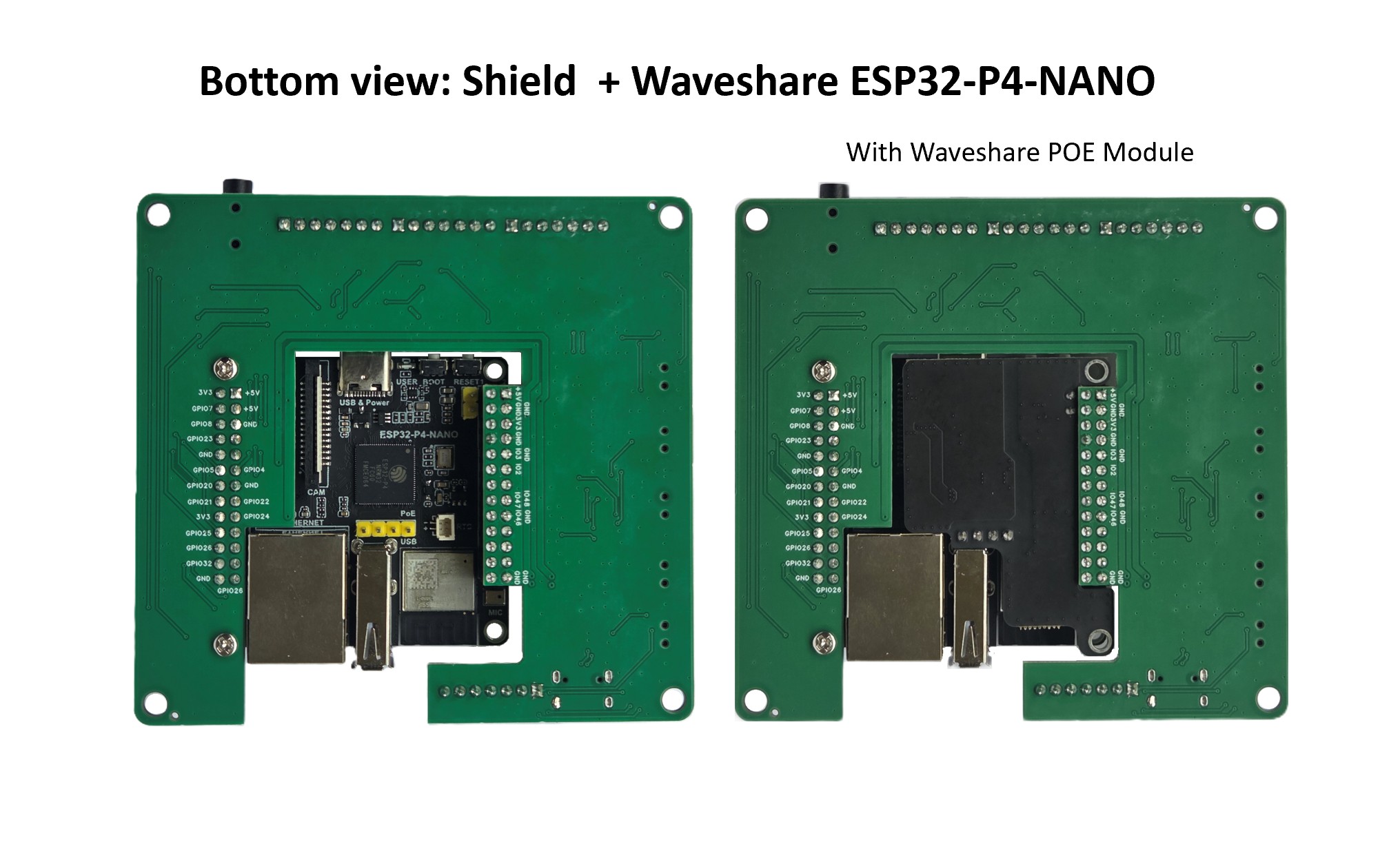

This shield/base board can be used with the Waveshare ESP32-P4-NANO (external link) controller board to build a string of lights/lighting system.

Attention: WLED software for the ESP32-P4 controller is currently in a very early experimental stage. This experimental fork on GitHub (external link) can be compiled and used. Many features are still far from being fully developed. This shield is therefore only recommended for those who enjoy experimenting and/or want to contribute to the development of WLED on an ESP32-P4 controller. See this Reddit post (external link) for more information.

Tip: This board is also ideally suited for Moonlight Software (external link): the open-source lighting platform that scales from art installations to professional stages.

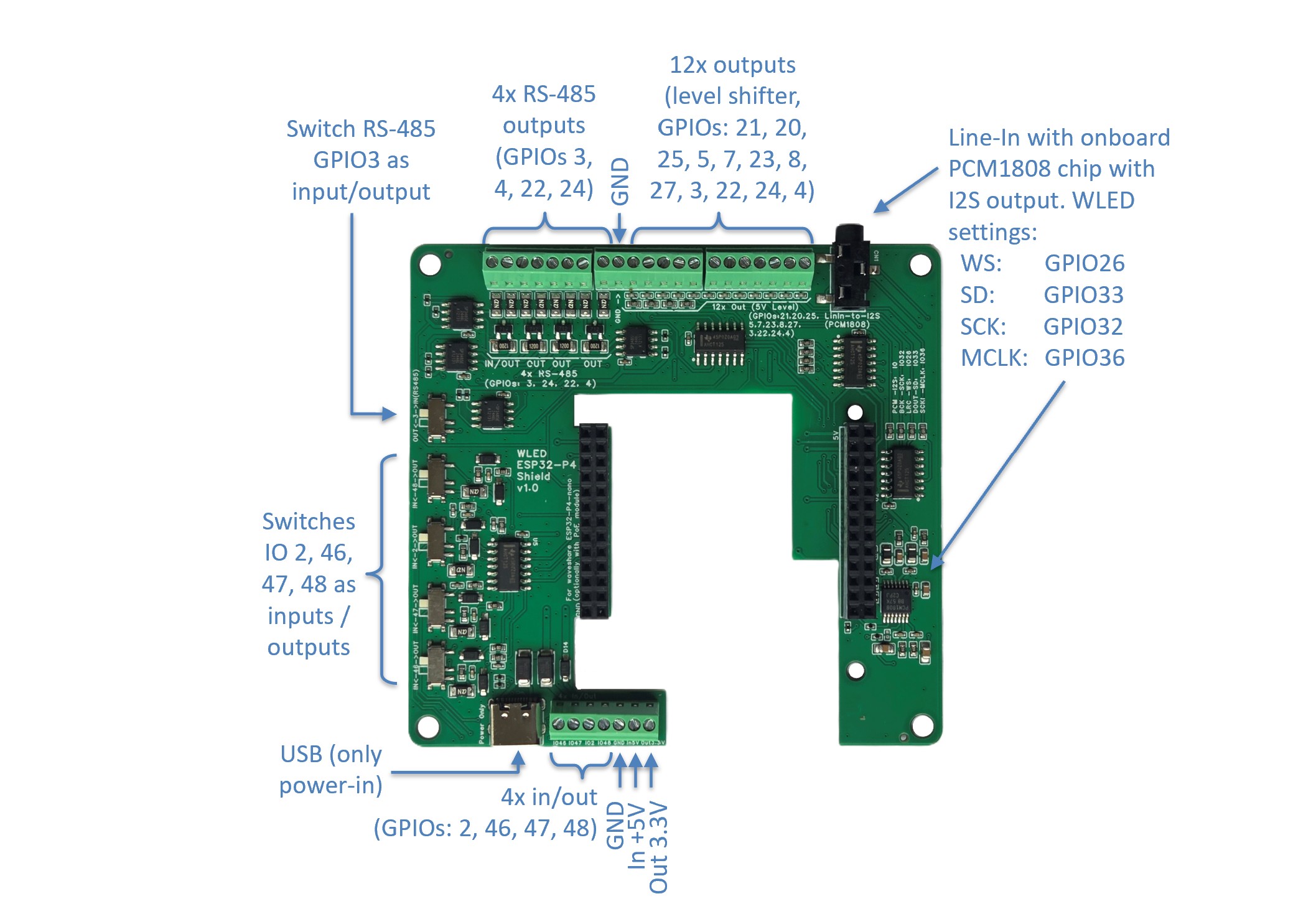

Features:

• Up to 16 data outputs (5V level, after level shifter)
• Up to 4 RS-485 outputs (as range extender outputs or DMX). One of these can also be used as an RS-485/DMX input.
• Up to 4 inputs (for pushbuttons, etc.). The same terminals are used as for the outputs. Input/output switching is done with a microswitch.
• Line-in input and a built-in analog-to-I2S chip for audio reactive WLED.

Instructions for installing/compiling WLED:

1. Installation: You can install a suitable version using the web installer at https://wled-install.github.io/ (external link)
2. Recommended: update of ESP32-C6 coprocessor firmware to 2.0.17 version: esp32-c6-firmware-update.github.io
3. Compile: Use PlatformIO with the WLED-MM fork by Troy (external link). You may need to make the following changes:

• In pin_manager.cpp, after the line "#elif defined(CONFIG_IDF_TARGET_ESP32P4)", comment out the lines "if (gpio < 2) return false;" and "if (gpio > 23 && gpio < 26) return false;".
• In platformio.ini, change the environment definition PARLIO_PINS to "PARLIO_PINS=21,20,25,5,7,23,8,27,3,22,24,4,46,47,2,48".
• To use Wi-Fi, comment out the line "-D WLED_USE_ETHERNET_ONLY" in platformio.ini.

Scope of delivery:

• WLED ESP32-P4 shield (without waveshare ESP32-P4-NANO module)

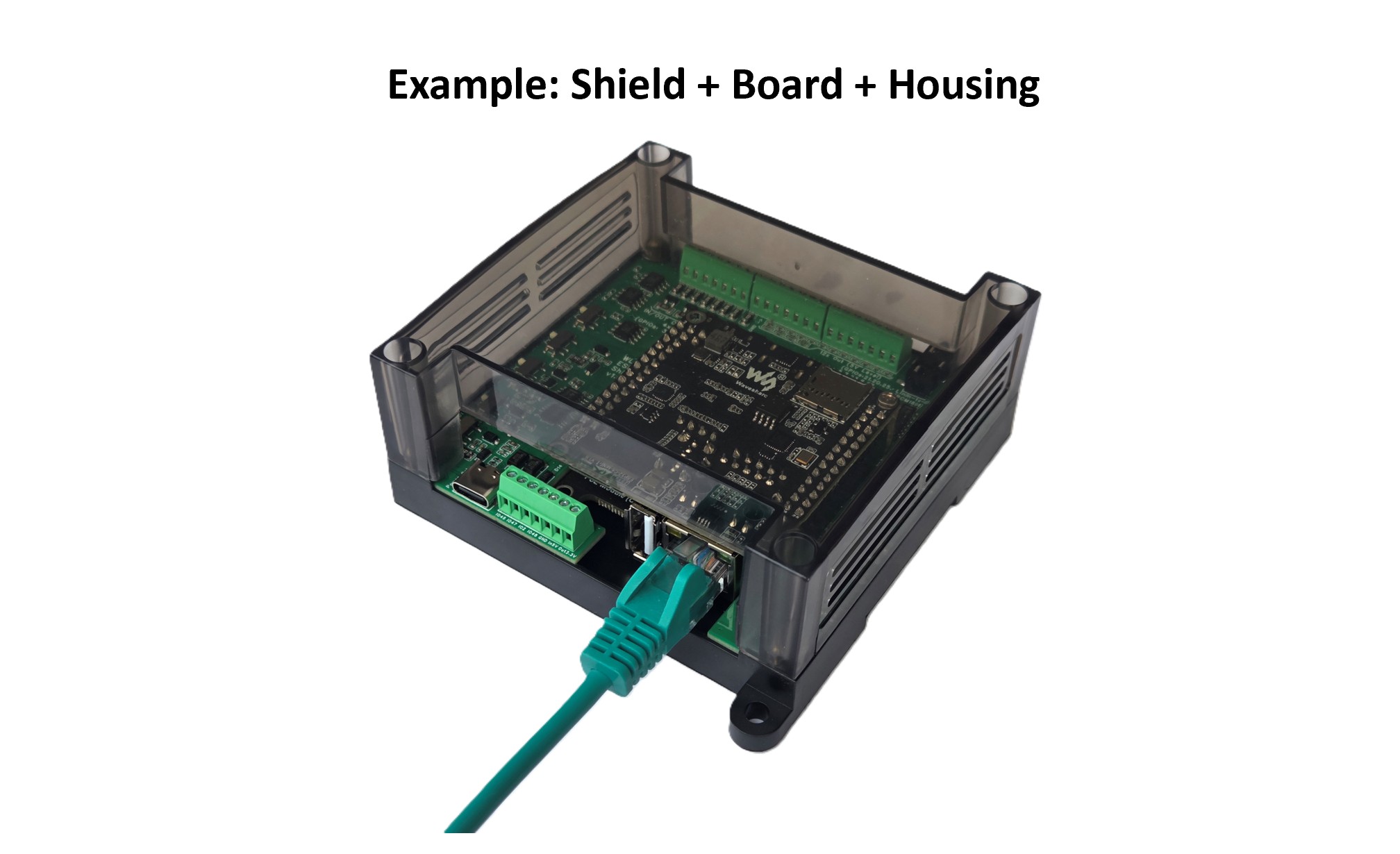

Accessories available separately:

• Housing

Technical data:

• Supply voltage: 5V (via USB or via screw terminal)
• Ambient temperature operation: +5°C … +35 °C
• Dimensions: 92x87x12 mm
• Screw terminals: Target torque: 0.1 Nm
• Screw terminals, cable cross section: 0.25 … 1 mm2, rigid or flexible with wire end sleeve
• Screw terminals, stripping/sleeve length: 4-5 mm

Mandatory information:

• WEEE Reg. No.: DE34359026
• Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München

Warnings:

• This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous.
• Please read this information completely before setting up your fairy lights or lighting system.

• This product may only be operated with safety extra-low voltage (SELF) (protection class III).
• This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.

• When connecting to the device terminals, please note the permitted cables and cross sections.
• Install and connect this product only when there is no voltage! Pay attention to the correct voltage and polarity!
• We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage.

• This product is only suitable for use in apartment-like environments.
• Protect this product from electrostatic discharge to avoid damage.
• Any use other than that described in this usage information is not intended and leads to exclusion of warranty and liability.
