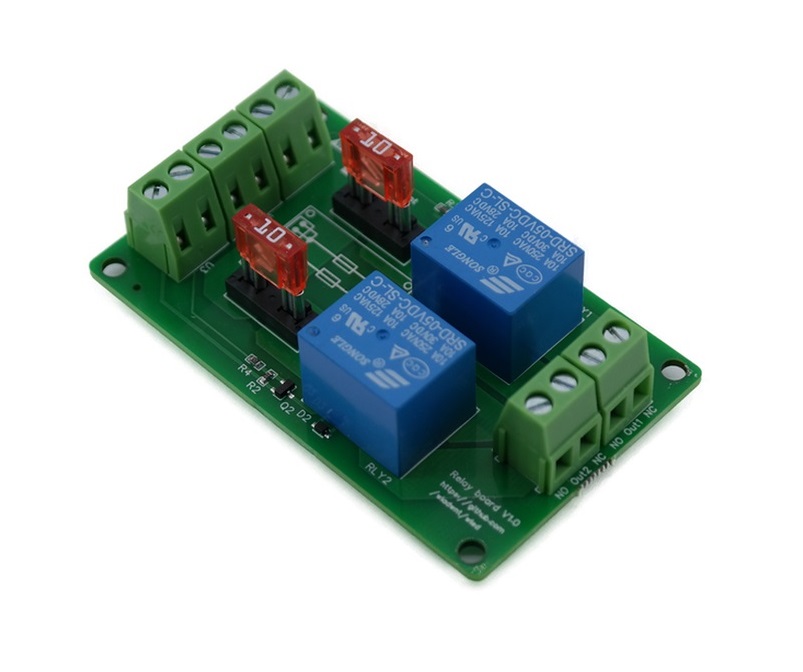

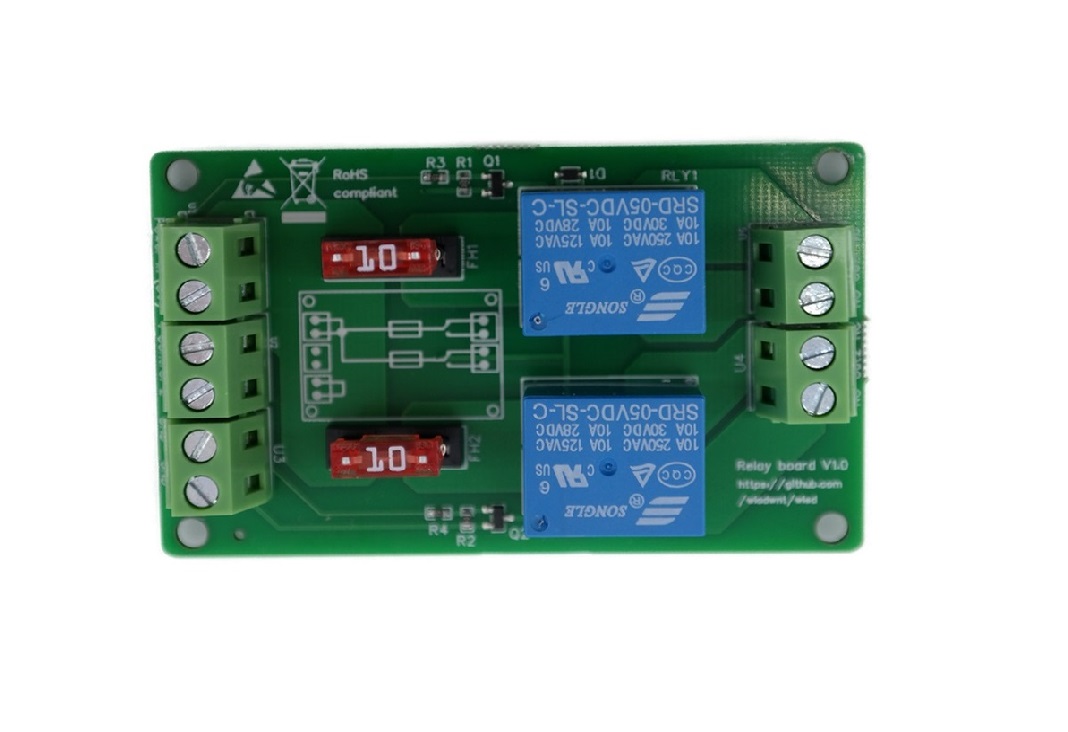

Relay board for WLED controller (5V)
Product number:
HW10005
Product information "Relay board for WLED controller (5V)"
(Shipping only to: DE, PL)
Description

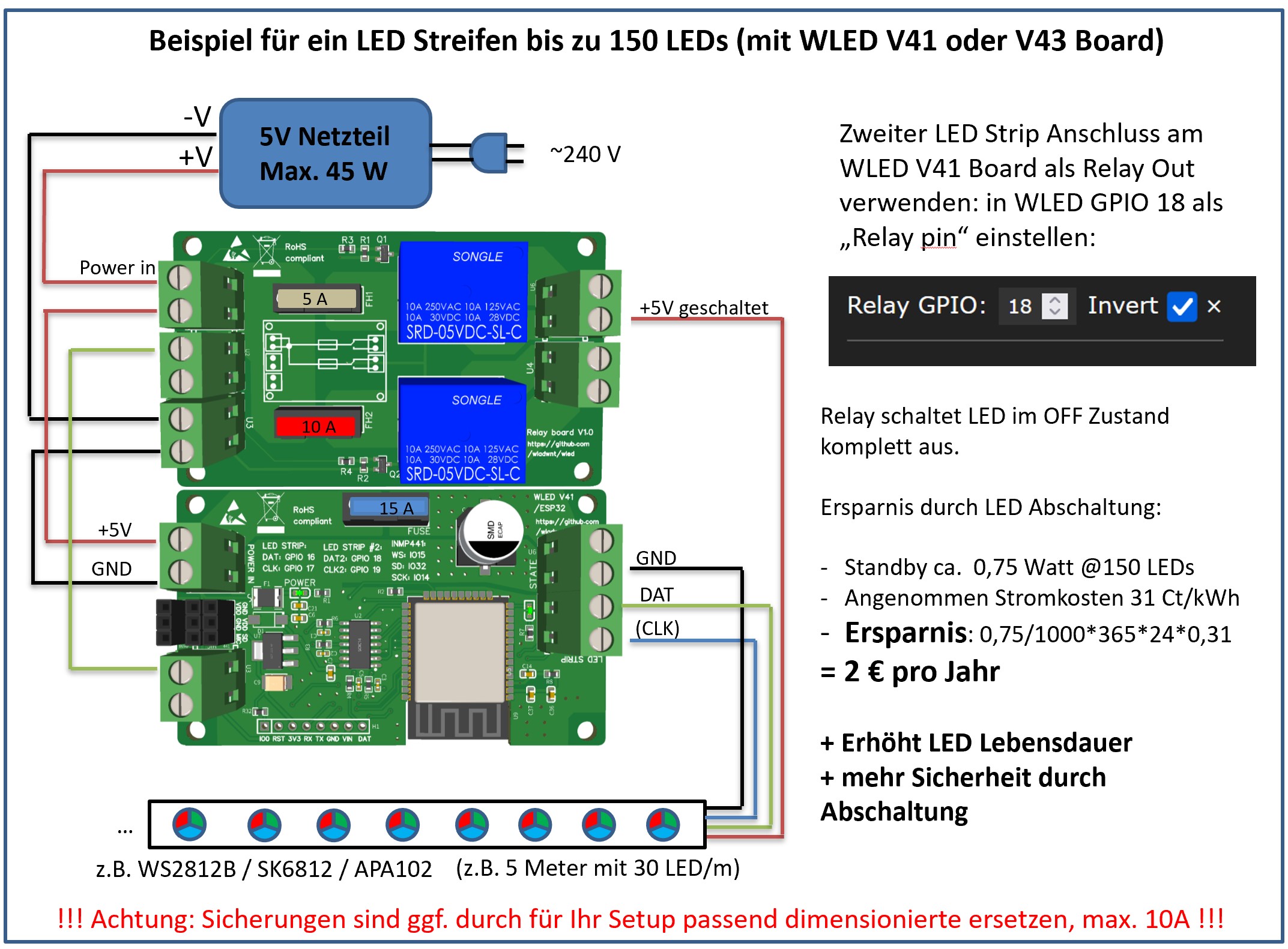

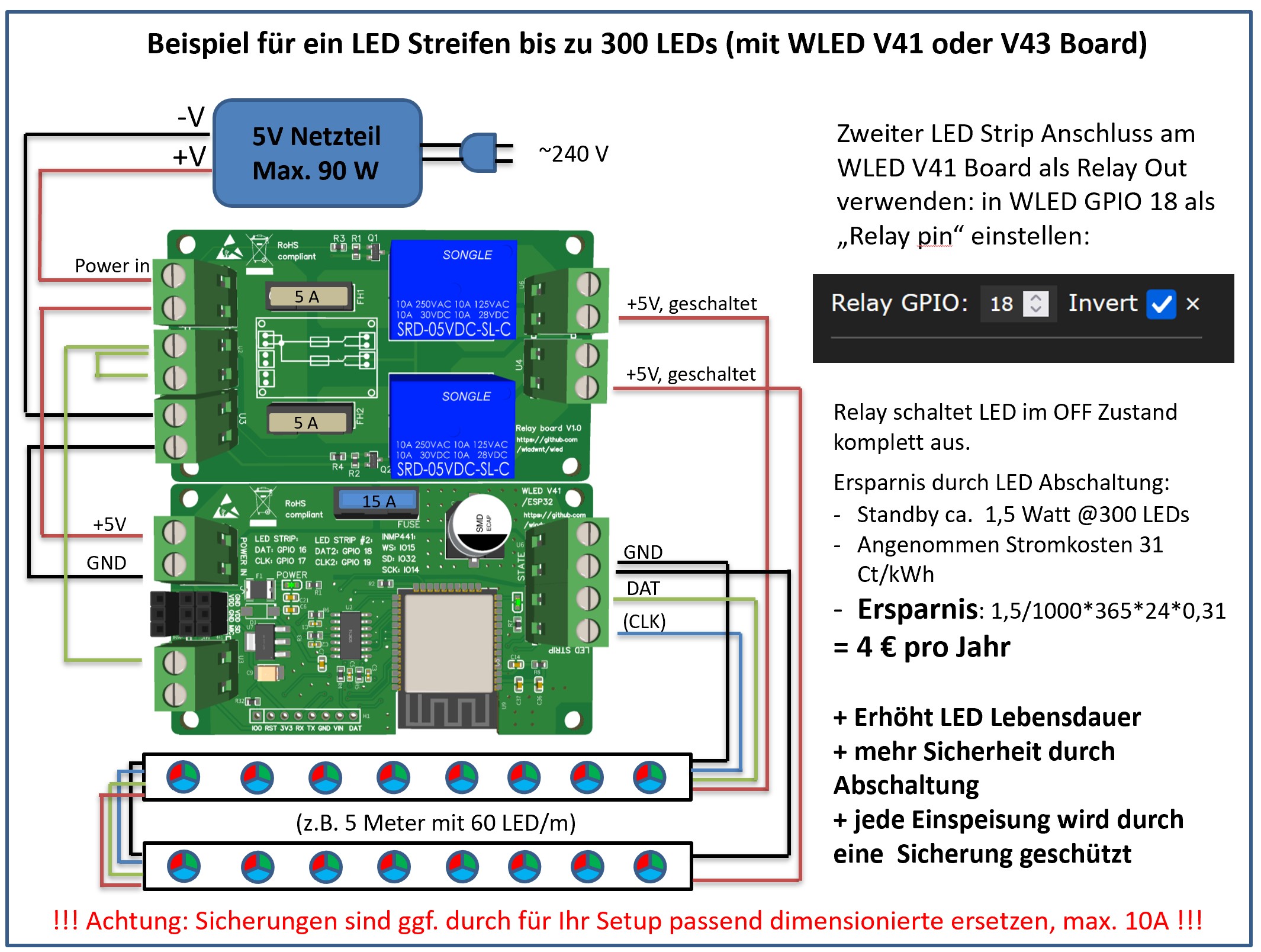

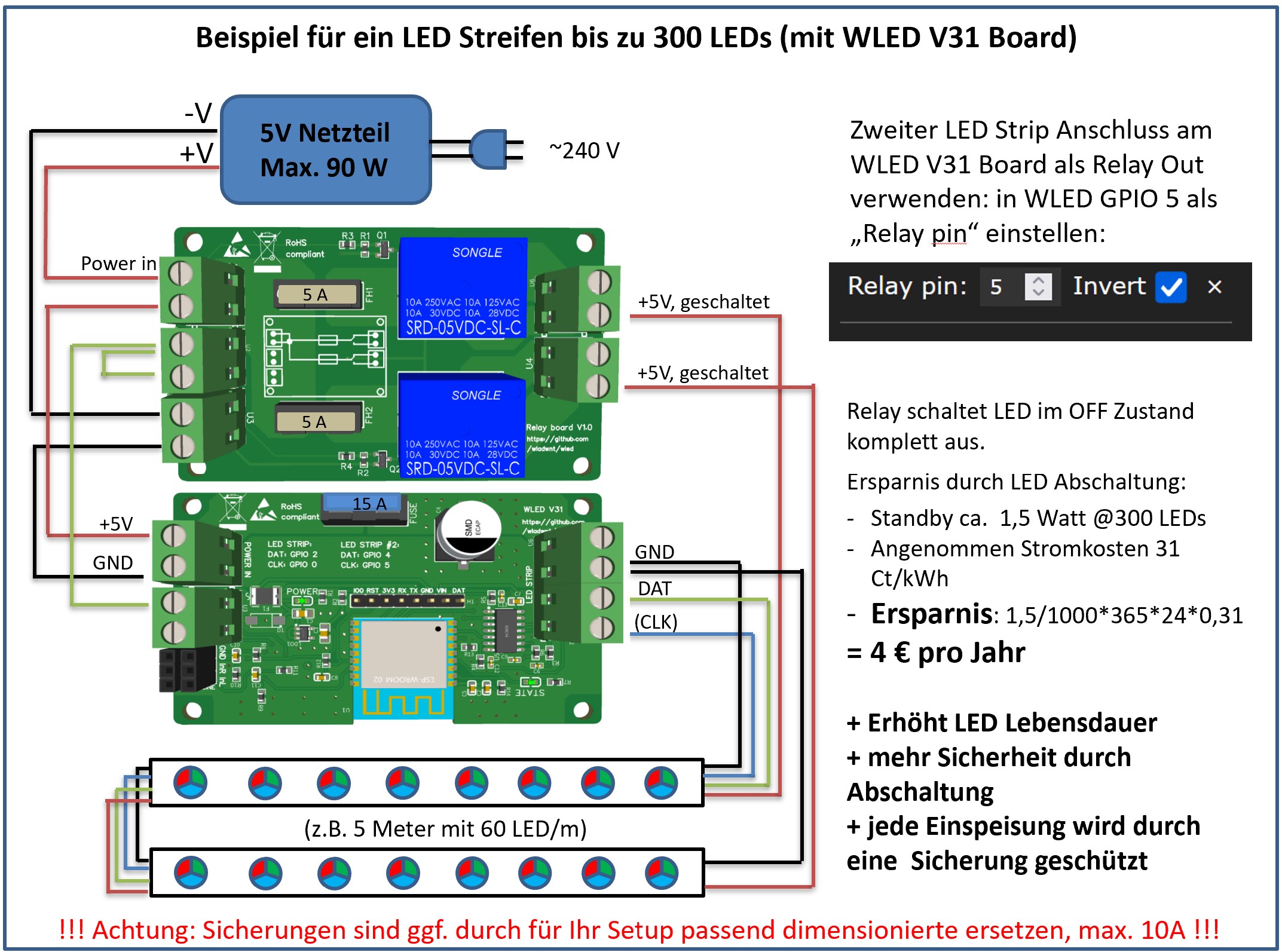

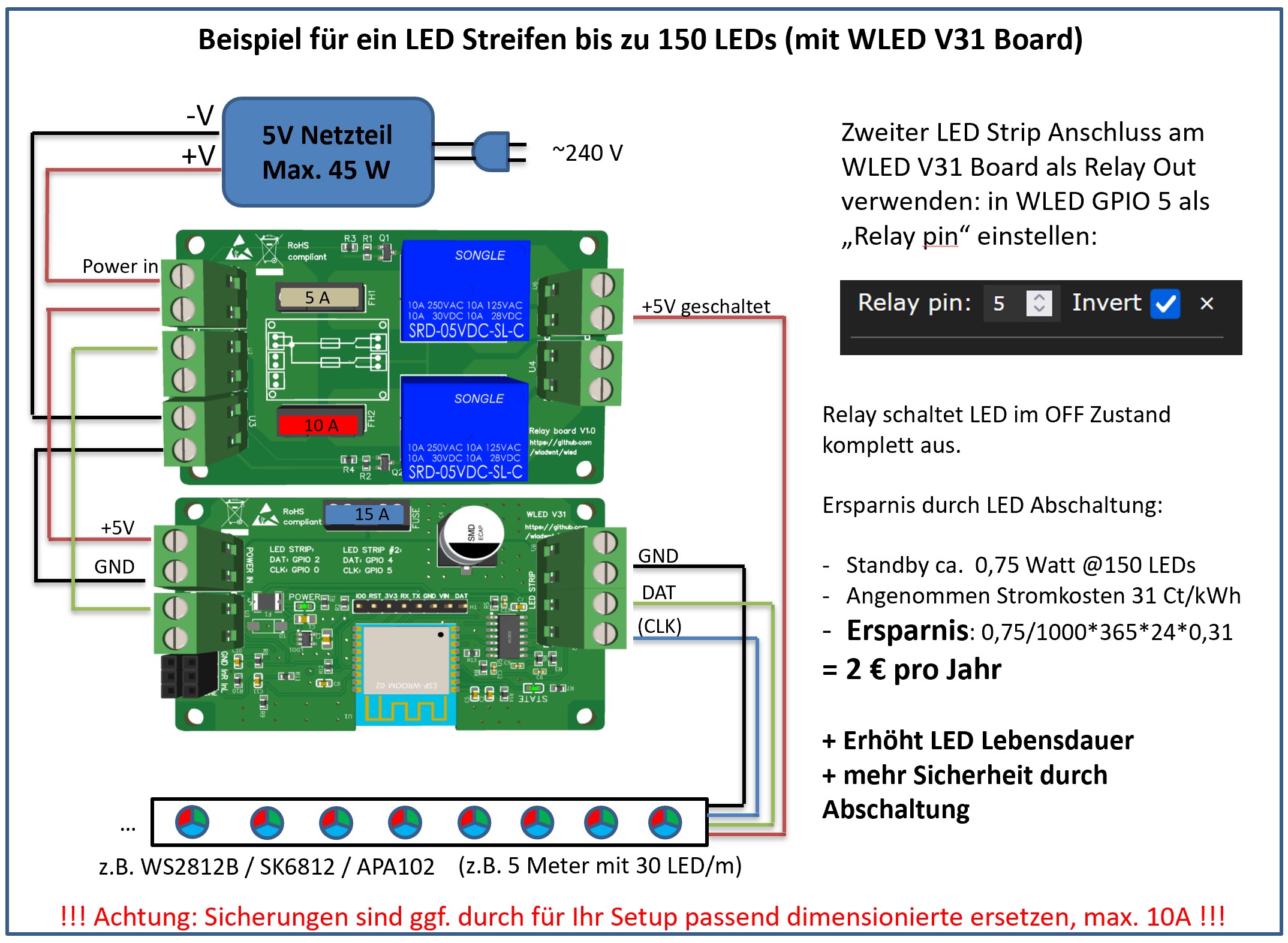

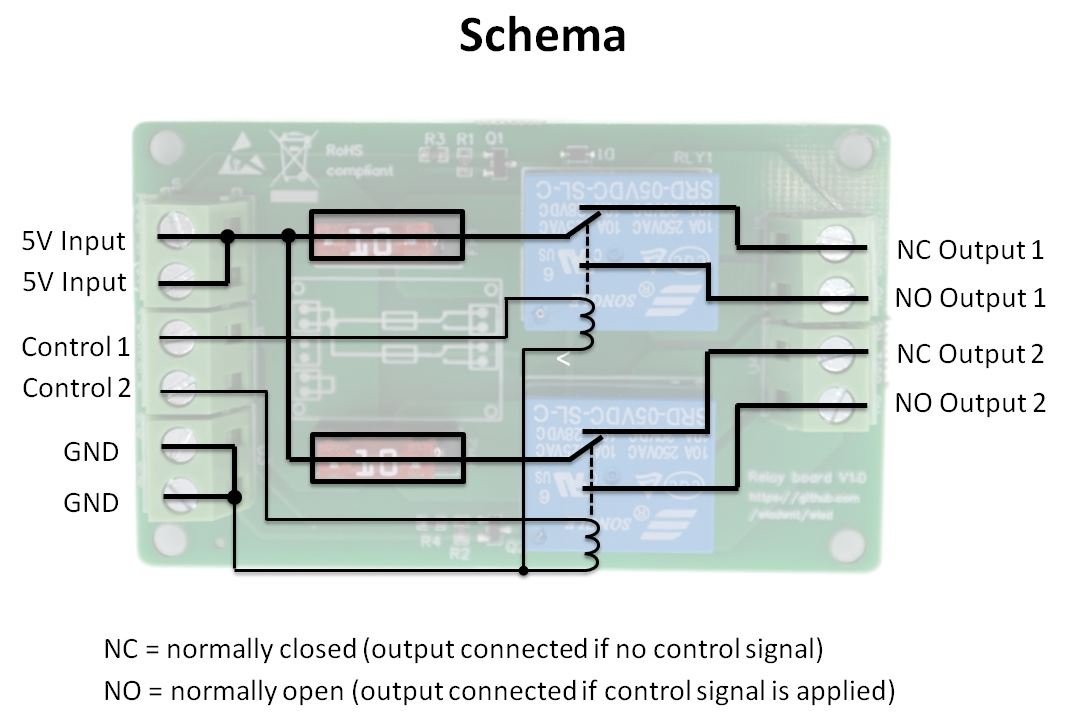

This product is designed for use in conjunction with WLED controllers V31 / V41 / V43 / V63 / V70. It allows the 5V LED strips to be switched off in the "off" state using a relay. This saves energy, increases the lifespan of LED strips and provides additional security. Two paths enable two separate controls or, for example, two feeders to be controlled.
Usage information: HERE
Scope of delivery
- Relay board
Accessories

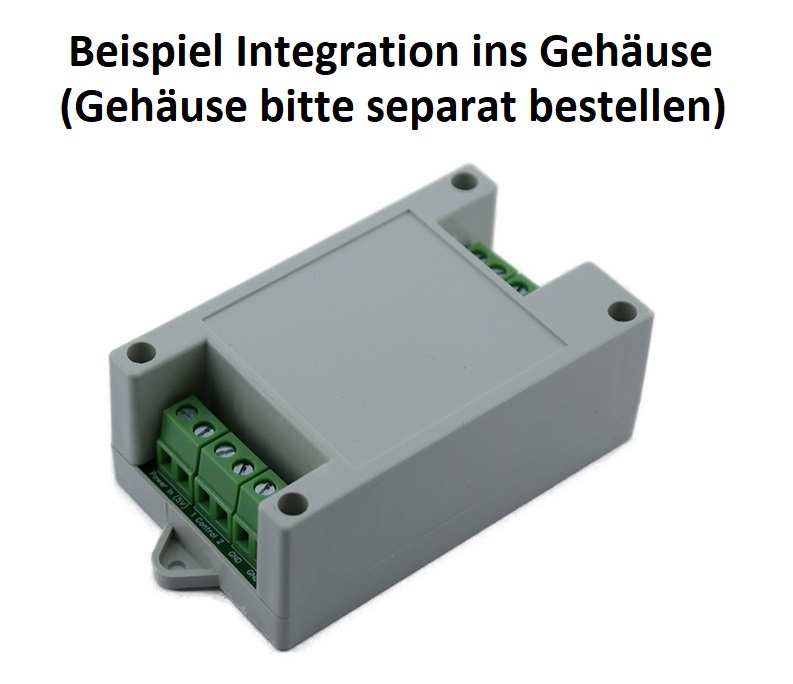

- Matching housing is available separately

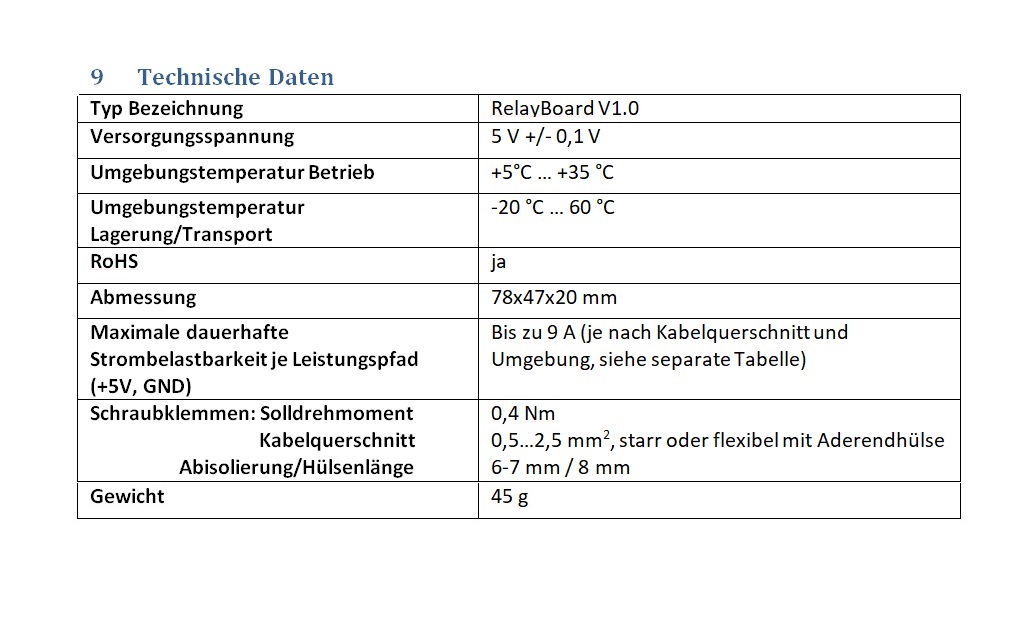

Technical data
- Supply voltage: 5 V +/- 0.1 V
- Ambient temperature operation: +5°C … +35 °C
- Ambient temperature storage/transport: -20 °C … 60 °C
- Dimensions: 78x47x20 mm
- Weight: 45 g
- Maximum permanent current carrying capacity per power path (+5V, GND): up to 9 A (depending on cable cross-section and environment)
- Screw terminals: Target torque: 0.4 Nm
- Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve
- Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm
- Cable cross section / Maximum permanent current carrying capacity (maximum output power)(*) per path:
- 0.5 mm2 / 3 A (15 W)
- 0.75 mm2 / NO: 6 A (30 W), NC: 5 A (25 W)
- 1 mm2 - 2.5 mm2 / NO: 9 A (45 W), NC: 5 A (25 W)
*This information alone may not be used to dimension the cables used. This requires other conditions, such as cable type, installation type, cable routing, cable length etc. be taken into account.
Mandatory information:
WEEE Reg. No.: DE34359026
Hazard notes
- This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the string of lights or lighting system to be set up (including e.g. Selection of the power supply, the light chain, cable selection, any necessary fuse elements) and using relevant to establish electrical engineering standards. Incorrect or improper use can be dangerous. Please read this completely Operating instructions before setting up your fairy lights or lighting system.
- This product may only be operated with safety extra-low voltage (SELF) (protection class III).
- Maximum permissible nominal value of the fuse is 10 A!
- This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.
- When connecting to the device terminals, please note the permitted cables and cross sections.
- Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be ensured by a targeted design of the light chain or lighting system and, if necessary, by integration the safety elements can be avoided both during normal operation and in the event of a fault.
- Install and connect this product only when there is no voltage! Make sure the polarity is correct!
- We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage.
- Keep the usage information digitally or printed so that you can always access it.
- This product is only suitable for use in devices for apartment-like surroundings.
- Protect this product from electrostatic discharge to avoid damage.
- Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.
