ABC! WLED controller board mini 5V/12V (ESP32)
| Quantity | Unit price |
|---|---|
| To 2 |
€20.90*
|
| To 4 |
€20.45*
|
| From 5 |
€19.95*
|
sold out, will be available soon
Product number:
HW10014
Product information "ABC! WLED controller board mini 5V/12V (ESP32)"
This controller will not be produced any more. Please select an alternative WLED Controller mini V73 (5-24V)
Description:
WLED Controller Board mini equipped with an ESP32 microcontroller, level shifter etc.
Connectors must be soldered by the customer themselves (e.g. terminal block or LED strips directly).
Connectors must be soldered by the customer themselves (e.g. terminal block or LED strips directly).
A helpful WLED FAQ can be found at https://wled-faq.github.io /
Features:
- Up to 4 LED strips can be controlled: 4 outputs available (DAT, CLK, DAT2, CLK2, whereby CLK and CLK2 outputs can also be used as data outputs)
- Very compact: dimensions only approx. 61x26x5 mm
- Can be used with 5V and 12V LED strips, no switching necessary
- Additional interfaces for digital microphone or Line-In-to-I2S Adapter for Sound Reactive WLED
- Pre-programmed and tested
- Optional accessory set including housing, plug, header, button etc. available (see accessories)
Attention: No returns if the board has already been modified by the customer, e.g. by soldering on components etc. The board is delivered pre-programmed and tested. Please also check the functionality upon receipt before modification.
Technical data:
- Supply voltage: 5...12V
- Weight: 8 g
- Ambient temperature operation: +5°C … +35 °C
- Ambient temperature storage/transport: -20 °C … 60 °C
- WiFi standard: IEEE 802.11 b/g/n, 2.4 GHz
- Antenna: integrated circuit board antenna 3.7 dBi
Mandatory information:
- WEEE Reg. No.: DE34359026
Warnings:
- This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous.
- This product may only be operated with safety extra-low voltage (SELF) (protection class III).
- This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.
- Install and connect this product only when there is no voltage! Make sure the polarity is correct!
- We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage.
- This product is only suitable for use in apartment-like environments. To avoid damage, protect this product from electrostatic discharge.
Recommended
%
Accessory set for WLED controller board mini (V70, V73)
€10.95*
€12.95*
(15.44% saved)
Description:
Accessory set for WLED controller boards minifor V70 (5V/12V, ESP32)for V73 (5-24V, ESP32)
Mandatory information:Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München, Germany
Delivery scope:
Housing (upper part, lower part, 2x screw)
Terminal block (pair)
4x screw for circuit board
4x 3-pin socket
8-pin header
2x buttons for soldering
INMP441 digital microphone
€4.95*
Pins:
enclosed (not soldered)
Description:
INMP441 digital microphone
Scope of delivery:
Microphone
Options selectable:
Pins included: 2x 3-pin header (short) and 2x 3-pin headers (long)
Pins soldered (suitable for WLED boards V41/V43/V63): 2x 3-pin headers (long) soldered and tested
Mandatory information:
WEEE Reg. No.: DE34359026 Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München
Warnings:
This product is an electronic component and intended for use by people with relevant electrical engineering knowledge and experiences.
Line-In to I2S adapter for WLED controllers
€14.99*
(Shipping only to: DE, PL)
Description:
for V41 (5V), V43 (5-24V) and V70 Mini (5..12V) controllers
also for universal 5V/12V shield (V63, with ESP32 and WLED SR version >= 0.13.3.7)
Extends the controller with an analogue audio input for Sound Reactive WLED
Special audio analog-to-digital converter (ADC) ensures that the analog audio signal is converted into a digital I2S signal, which can then be processed by the WLED controllerNew version V2: switch for normal/higher sensitivity
Mandatory information:
WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München
Warnings:
This product is intended for use by persons with relevant electrical engineering knowledge and experience.
This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.
Install and connect this product only when the power is off!
We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage.
Protect this product from electrostatic discharge to avoid damage.
%

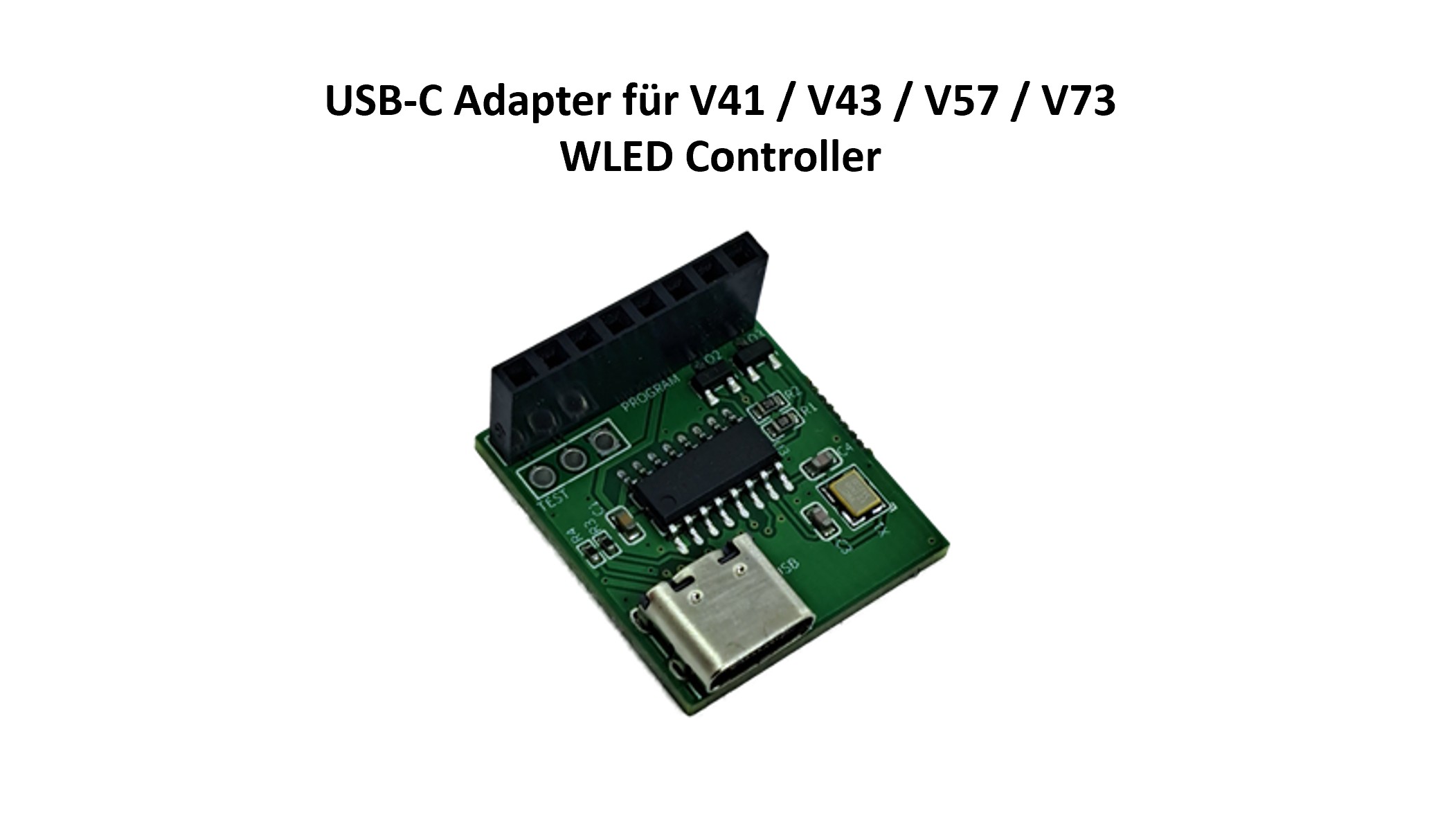

USB-C adapter for programming WLED controllers V41/V43/V70/V73
€6.25*
€6.95*
(10.07% saved)
Description:
Based on CH340G chip;
Includes automatic reset (RST/IO0) control;
Compatible with Arduino, PlatformIO, web based installers (https://wled-install.github.io/, https://install.wled.me/);
Micro-USB socket;
Pin compatible with WLED V41 / V43 / V70 / V73 boards, just plug in and program;
Scope of delivery:
USB adapter (without cable)
Mandatory information:
WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München
Warnings:
This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.
