(Shipping only to: DE, PL) Description of the WLED Controller Board V43: With this product, for example, a string of lights or lighting system controlled via WLAN can be set up. It is based on an ESP32 microcontroller. To set up a chain of lights or lighting system, a power supply unit and one or more LED strips are required in addition to this product. The following LED types are supported: WS2812B, WS2813, WS2815, SK6812(RGBW, RGBNW, RGBWW), APA102, WS2801, WS2811, LPD8806, WS2814 RGBW, COB-RGB WS28xx, WS2805 SPI RGBCCT (as of WLED 0.15.x), APA106 (as of WLED 0.15.x). 5V, 12V and 24V LED strips are supported. The controller essentially consists of an ESP32-WROOM-32E (4MB) module, backup capacitor and an SN74AHCT level converter to ensure trouble-free operation of the LEDs. New is revision 3: prepared for Ethernet adapters (available separately in the shop). This product is delivered pre-programmed with the following open source software for testing purposes: https://github.com/wled/WLED (SW licenses here) Wiki (in English) for this open source software can be found at: https://kno.wled.ge A helpful WLED FAQ can be found at https://wled-faq.github.io/ Attention: the voltage of your power supply must always correspond to the voltage of the LEDs!  For example, for 12V LEDs you need a 12V power supply. Usage information: WLED_V43_Controller_Usage_Info.pdfAttention LED strips with Clock signal: depending on LED type you would eventully need to reduce the Clock from "Normal" to "Slow" in LED preferences for stable operation of the strip.Attention analogue, non-addressable (PWM controlled) LED strips: additional hardware is required, for example PWM Board Scope of delivery: WLED controller board, tested and pre-programmed Accessories available separately: USB-C programming adapter Enclosure INMP441 digital microphone Line-In to I2S adapter Ethernet (LAN) adapterRS-485 range extender / DMX adapter Advantages of our WLED controllers: We use stable, correctly dimensioned voltage converters with a margin to ensure stable function even with rather difficult power supplies Our WLED controllers have extensive plug & Play interfaces. This allows for a clean setup without “tangled cables” We use high-quality, industrially manufactured and assembled circuit boards. This is an important component for the long service life of our WLED controllers Our WLED controllers are equipped with original ESP8266 / ESP32 modules from Espressif that are qualified according to technical standards. No cheap and questionable replicas! We only use fast level shifters and EMC filters at outputs to generate perfect control signals for LED strips with improved EMC properties The power path in our WLED controllers has been extensively tested and high-quality screw terminals are used, which guarantees the specified current carrying capacity and long service life Our WLED controllers include various safety measures: fuse in the power current path, protective circuitry in the electronic part Our WLED controllers are tested and pre-programmed before delivery. This makes an easy WLED start possible Technical data: Supply voltage: 4.7 V to 24.3 V Ambient temperature operation: +5°C … +35 °C WiFi standard: IEEE 802.11 b/g/n, 2.4 GHz Dimensions: 78x46.5x22 mm Maximum permanent current carrying capacity power path (+V, GND): up to 13 A (depending on cable cross section and environment) Average power consumption in power on state (without load path): 0.60 W Average power consumption in power off (networked standby mode): 0.27 W Average power consumption in AP mode (configuration mode): 0.6 W Current consumption, peak (without load): 800 mA Efficiency at full load: typically 94% Power loss at full load: typ. 4 W Ambient temperature storage/transport: -20 °C … 60 °C Screw terminals: Target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 … 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Antenna: integrated circuit board antenna 3.4 dBi Weight: 29.2 g Maximum permanent current carrying capacity of the power path of the device (power supply connection to the LED strip connection, each for +V and GND)*: Cable cross section / maximum permanent current carrying capacity (*): 0.5 mm2 / 3 A 0.75 mm2 / 6 A 1 mm2 / 9 A 1.5 mm2 - 2.5 mm2 / 13 A *This information alone may not be used to dimension the cables. To do this, other conditions such as line type, type of installation, line routing, line length, etc. must be taken into account. Mandatory information: WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read this information completely before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III). This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Pay attention to the correct voltage and polarity! We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. This product is only suitable for use in apartment-like environments. Protect this product from electrostatic discharge to avoid damage. Any use other than that described in this usage information is not intended and leads to exclusion of warranty and liability.

(Shipping only to: DE, PL) Description: WLED Controller Board mini equipped with an ESP32 microcontroller, level shifter etc.Connectors must be soldered by the customer themselves (e.g. terminal block or LED strips directly). A helpful WLED FAQ can be found at https://wled-faq.github.io / Features: Up to 4 LED strips can be controlled: 4 outputs available (DAT, CLK, DAT2, CLK2, whereby CLK and CLK2 outputs can also be used as data outputs) Very compact: dimensions only approx. 61x26x5 mm Can be used with 5V, 12V or 24V LED strips, no switching necessary Additional interfaces for digital microphone or Line-In-to-I2S Adapter for Sound Reactive WLED Pre-programmed and tested Optional accessory set including housing, plug, header, button etc. available (see accessories) Attention: No returns if the board has already been modified by the customer, e.g. by soldering on components etc. The board is delivered pre-programmed and tested. Please also check the functionality upon receipt before modification. Technical data: Supply voltage: 5...24V Weight: 8.2 g Ambient temperature operation: +5°C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C WiFi standard: IEEE 802.11 b/g/n, 2.4 GHz Antenna: integrated circuit board antenna 3.4 dBi Mandatory information: WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. This product may only be operated with safety extra-low voltage (SELF) (protection class III). This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. This product is only suitable for use in apartment-like environments. To avoid damage, protect this product from electrostatic discharge.

(Shipping only to: DE, PL) Description: With this product, a WLED controller for addressable 5V and 12V LED strips can be built (e.g. SK6812, WS2812B, WS2811, WS2815 etc.), on which, for example, open source WLED software from Aircookie can run. An ESP8266 or ESP32 microcontroller board in D1 mini format is also required for this. A suitable housing is also available in our shop. In addition to ESP8266 and ESP32 microcontroller boards, this board can also be used with Lolin's mini boards with new microcontroller types such as ESP32-C3 mini, ESP32-S2 mini and ESP32-S3 mini. However, the WLED software is still highly experimental for these new types of microcontrollers. This WLED controller board can be connected to 12V or 5V voltage source, depending on whether you want to operate 12V or 5V LED strips. No switching using jumpers etc. is necessary. The GPIOs number to be set for the LED control in WLED SW are printed on the back side of this shield for ESP8266 and ESP32 microcontroller boards. For the newer controller types these are as follows: ESP32-C3: DAT is GPIO 6; CLK is GPIO 7; DAT2 is GPIO 2; CLK2 is GPIO 3 ESP32-S2: DAT is GPIO 16; CLK is GPIO 18; DAT2 is GPIO 7; CLK2 is GPIO 9 ESP32-S3: DAT is GPIO 16; CLK is GPIO18; DAT2 is GPIO 12; CLK2 is GPIO 13 A helpful WLED FAQ can be found at: https://wled-faq.github. io/ Interfaces: 5.. 12V power input LED connection (5...12V, GND, data, clock) Second LED connection (Data2, Clock2) Interface for a digital microphone (INMP441, can only be used with ESP32 microcontroller!) Interface for an analog microphone (e.g. MAX4466) or line-in adapter Can also be equipped with a temperature sensor DS18B20 Features: Capacitor SN74AHCT level shifter Multi-voltage DC/DC for microcontroller and level shifter supply from 5..12 V Current capacity 5..12V path: max. 13A Screw terminals: target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Maximum permanent current carrying capacity of the power path of the device (power supply connection to the LED strip connection, each for +V and GND)*: Cable cross section / Maximum permanent current carrying capacity (*): 0.5 mm2 / 3 A 0.75 mm2 / 6 A 1 mm2 / 9 A 1.5 mm2 - 2.5 mm2 / 13 A Scope of delivery: Shield as described, equipped and with a 15A fuse (without microcontroller!) Notes: Information about WLED software (external website): https://kno.wled.ge / WLED software online installer (external website): https://wled-install.github.io/ Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München, Germany Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. This product may only be operated with safety extra-low voltage (SELF) (protection class III). This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Protect this product from electrostatic discharge to avoid damage.

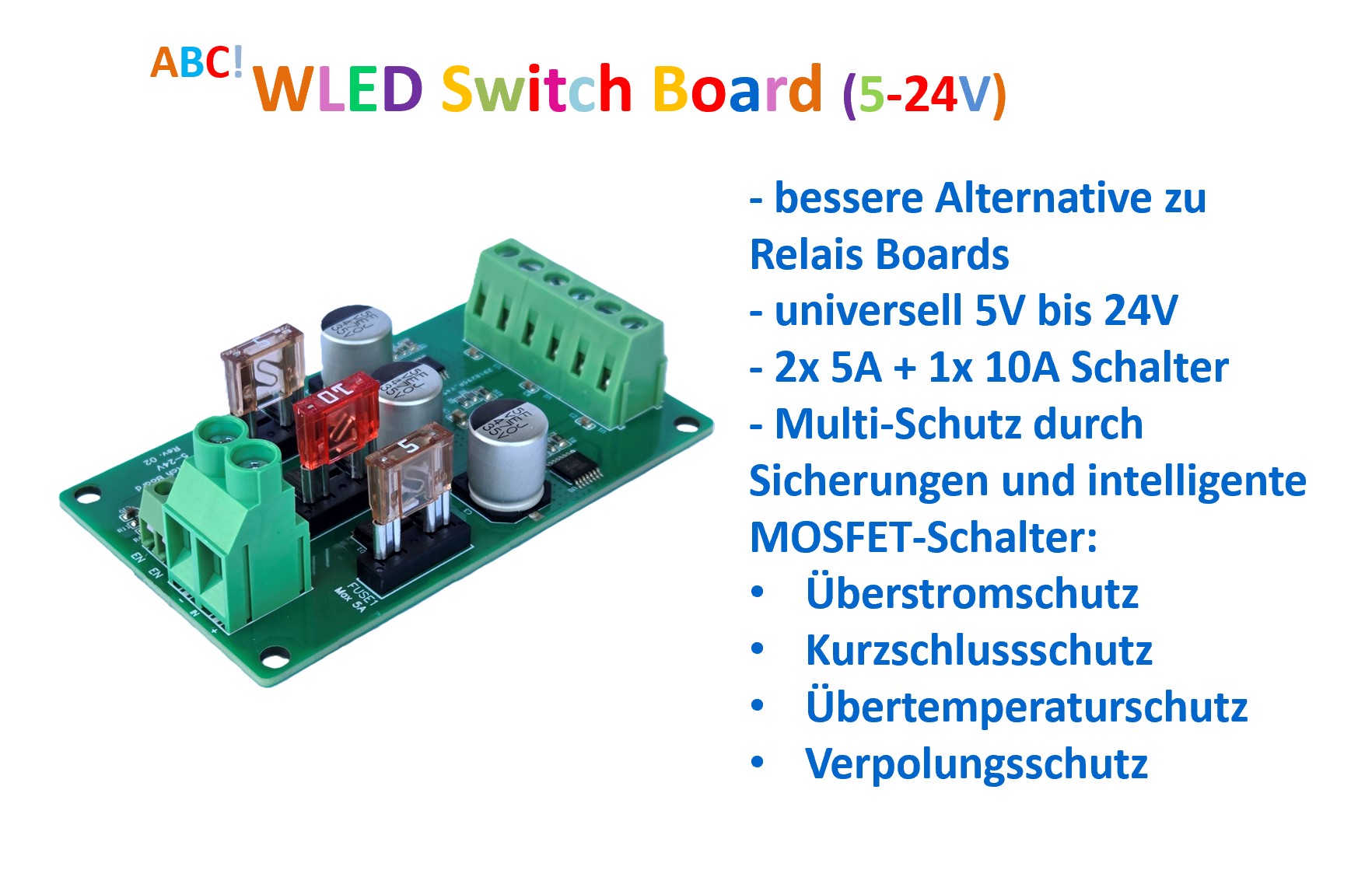

DescriptionThis product is designed for use with WLED controllers. It allows the LED strips to be switched off in the "off" state using intelligent MOSFET switches. This saves energy and increases the lifespan of the LED strips. The combination of fuses, protection diodes, and intelligent MOSFETs provides additional safety (reverse polarity protection, overcurrent protection, short-circuit protection, and overtemperature protection). Three channels allow for control of three power injections. Furthermore, multiple boards can be used in parallel.Example of usage in WLED wiring designer toolScope of delivery:Switch board incl. 2x 5A and 1x 10A fusesAccessories:Suitable housing is available separatelyTechnical data:Supply voltage: 5 ... 24 VAmbient temperature operation: +5°C … +35 °CAmbient temperature storage/transport: -20 °C … 60 °CDimensions: 78x47x26 mmWeight: 36 gScrew terminals, Power in, target torque: 0.5 Nm Screw terminals, Power in, cable cross section: 1.5 ... 4 mm2, rigid or flexible with wire end sleeveScrew terminals, Power in, stripping/sleeve length: 7-8 mmScrew terminals, enable, target torque: 0.2 NmScrew terminals, enable, cable cross section: 0.24 ... 1 mm2, rigid or flexible with wire end sleeveScrew terminals, enable, stripping/sleeve length: 4-5 mmScrew terminals, output, target torque: 0.4 NmScrew terminals, output, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeveScrew terminals, output, stripping/sleeve length: 7-8 mmMaximum current carrying capacity: Power Input: 20A; Power Output 1 and 3: 5A; Power output 2: 10A (permanently at room temperature and free air convection; restrictions may apply at elevated room temperatures or heat build-up) Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 MünchenWarnings:This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read these operating instructions completely before setting up your fairy lights or lighting system.This product may only be operated with safety extra-low voltage (SELF) (protection class III).The maximum permissible nominal value of the fuses must be strictly observed! Individual areas of the circuit board and components can reach temperatures of up to 150°C during operation. Use a suitable housing. This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.When connecting to the device terminals, please note the permitted cables and cross sections.Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault.Install and connect this product only when there is no voltage!Make sure the polarity is correct!We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage.Keep the usage information digitally or printed so that you can always access it.This product is only suitable for use in devices for apartment-like surroundings.Protect this product from electrostatic discharge to avoid damage.Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.

Shipping only to DE, PLFor shipping to other countries see: https://wled.shop(external link)Description This product can be used as a development and evaluation board for various purposes. It is based on an ESP32 microcontroller and has the following external interfaces integrated: Ethernet (LAN) CAN (via 2x RJ45 sockets [pin assignment compatible with CAN-Open standard] and a screw terminal block) Micro SD card slot Micro USB Placement option for a second CAN bus connection (with an MCP2515 and an SN65VHD230 IC) Due to these features, this product is particularly suitable for developing and building CAN gateways. A suitable housing is available as an accessory, which also enables installation on a top-hat rail. Usage information in German: V8 HERE ; V10 HERE Usage information in English: V8 HERE ; V10 HERE Version V10 will be delivered starting May 25, 2025. Before that, version V8. Both versions are functionally identical. Options available (please select above in the drop-down menu under the price): Without additional equipment (without a second CAN, sufficient for most applications) With additional equipment: second CAN, for special purposes Mandatory information: WEEE reg. no.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. Incorrect or improper use can be dangerous. This product may only be operated with safety extra-low voltage (SELF) (protection class III). This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. Please note the technical data, especially the maximum current carrying capacity. Overloading may result in the destruction of this product and/or a fire. Only install and connect this product when there is no voltage! Make sure the polarity is correct! We assume no liability for property damage or personal injury caused by improper use or ignoring of the hazard warnings. In these cases, the warranty claim also expires! For further damages we do not accept liability. Keep this usage information digitally or printed so you can always access it. To avoid damage, protect this product from electrostatic discharge. Any use other than that described in this usage information is not intended and leads to exclusion of warranty and liability.

(Shipping only to: DE, PL)  Description: Ethernet adapter for "ABC! WLED controller board (5-24V)" (V43). This adapter also allows the controller to be operated via an Ethernet (LAN) interface. Recommended source for WLED software: https://wled-install.github.ioMandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. Install and connect this product only when there is no voltage! We assume no liability for property damage or personal injury caused by improper use or non-observance of the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Protect this product from electrostatic discharge to avoid damage.

(Shipping only to: DE, PL) Description This product is designed for use in conjunction with WLED controllers V43 / V62 / V63 / V73. It is helpful if you want to implement power distribution to several LED feed points. Variants with different fuses can be selected. Use WLED Power/Fuse/Injections Calculator to help you choose proper fuses.The fuse used in this product must have the nominal value less or equal to 10 A. Scope of delivery: Fuse board Accessories Matching housing is available separately Suitable fuses are available separately Technical data Operating voltage: 5..24 V Ambient temperature operation: +5°C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C Dimensions: 78x47x20 mm Weight without/with fuses: 20 g / 22 g Maximum permanent current carrying capacity per power path: up to 9 A (depending on cable cross section and environment) Screw terminals: Target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Cable cross section / maximum permanent current carrying capacity (maximum output power)(*) per path: 0.5 mm2 / 3 A (15 W) 0.75 mm2 / 6 A (30 W) 1 mm2 - 2.5 mm2 / 9 A (45 W) *This information alone may not be used to dimension the cables used. This requires other conditions, such as cable type, installation type, cable routing, cable length etc. be taken into account. Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München, GermanyWarnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read these operating instructions completely before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III). Maximum permissible nominal value of the fuse is 10 A! This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can destroy this Product and/or lead to a fire and must be ensured by a targeted design of the light chain or lighting system and, if necessary, by integration the safety elements can be avoided both during normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Keep the usage information digitally or printed so that you can always access it. This product is only suitable for use in devices for apartment-like surroundings. Any use other than that described in this usage information is not intended and will lead to to exclusion of warranty and liability.

Description: INMP441 digital microphone Scope of delivery: Microphone Options selectable: Pins included: 2x 3-pin header (short) and  2x 3-pin headers (long) Pins soldered (suitable for WLED boards V41/V43/V63): 2x 3-pin headers (long) soldered and tested Mandatory information: WEEE Reg. No.: DE34359026 Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is an electronic component and intended for use by people with relevant electrical engineering knowledge and experiences.

(Shipping only to: DE, PL) Description: for V41 (5V), V43 (5-24V) and V70 Mini (5..12V) controllers also for universal 5V/12V shield (V63, with ESP32 and WLED SR version >= 0.13.3.7) Extends the controller with an analogue audio input for Sound Reactive WLED Special audio analog-to-digital converter (ADC) ensures that the analog audio signal is converted into a digital I2S signal, which can then be processed by the WLED controllerNew version V2: switch for normal/higher sensitivity Mandatory information: WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. Install and connect this product only when the power is off! We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Protect this product from electrostatic discharge to avoid damage.

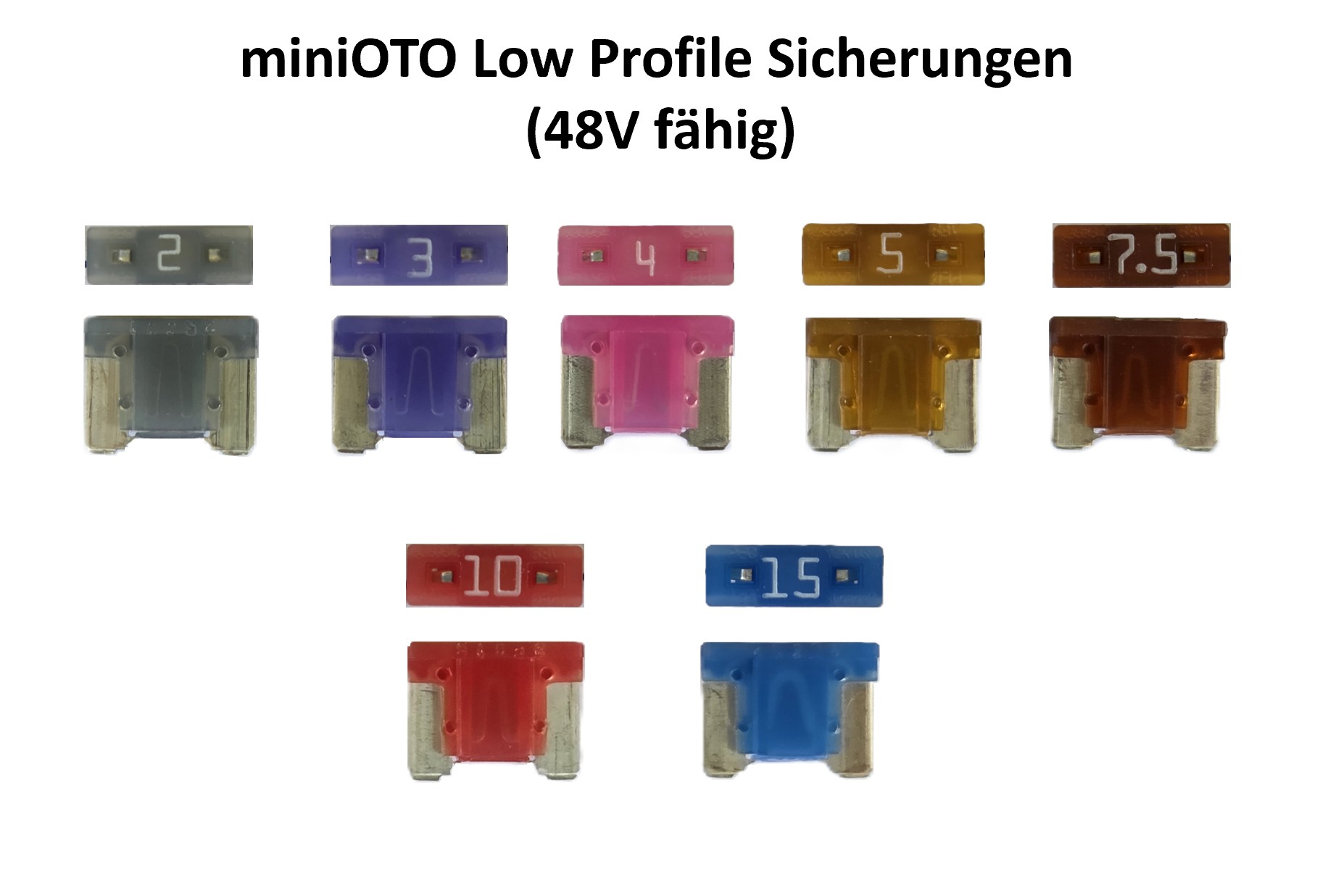

Description: High-quality fuses from a European manufacturer iMaXX from Netherlands. Type: miniOTO, FLP70xx Series. Suitable for our WLED PWM boards, NOT for other boards like Controllers etc. Available ratings: 2 A, 3 A, 4 A, 5 A, 7.5 A, 10 A, 15 A. Complies with international specifications, compliant with DIN ISO 8820-9.Manufacturer: iMAXX Companies, Ohmweg 61, 2952 BB Alblasserdam, Holland Technical data: max. Voltage: 58V Breaking capacity: 1 kA Width: 11.1 mm Packaging weight: 0.001 kg RoHS compliant: Yes

(Shipping only to: DE, PL) Description: This product is designed for use in conjunction with WLED controllers V43 / V63 / V70. It allows the 12V LED strips to be switched off in the “off” state using a relay. This saves energy, increases the lifespan of LED strips and provides additional security. Two paths enable two separate controls or, for example, two feeders to be controlled. Usage information: HERE Scope of delivery: Relay board Accessories: Suitable housing is available separately Technical data: Supply voltage: 12 V +/- 0.5 V Ambient temperature operation: +5 °C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C Dimensions: 78x47x20 mm Weight: 45 g Maximum permanent current carrying capacity per power path (+12 V, GND): up to 9 A (depending on cable cross section and environment) Screw terminals: Target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Cable cross section / maximum permanent current carrying capacity (maximum output power)(*) per path: 0.5 mm2 / 3 A (36 W) 0.75 mm2 / NO: 6 A (72 W), NC: 5 A (60 W) 1 mm2 - 2.5 mm2 / NO: 9 A (108 W), NC: 5 A (60 W) *This information alone may not be used to dimension the cables. This requires other conditions, such as cable type, installation type, cable routing, cable length etc. are taken into account. Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings:This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read these operating instructions completely before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III).Maximum permissible nominal value of the fuse is 10 A! This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We assume no liability for property damage or personal injury caused by improper use or failure to observe the hazard warnings. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Keep the usage information digitally or printed so that you can always access it. This product is only suitable for use in devices for apartment-like surroundings. Protect this product from electrostatic discharge to avoid damage. Any use other than that described in this usage information is not intended and leads to exclusion of warranty and liability.

(Shipping only to: DE, PL) Description This product is designed for use in conjunction with WLED Controller V43. It allows the 24V LED strips to be switched off in the “off” state using a relay. This saves energy, increases the lifespan of LED strips and provides additional security. Two paths enable two separate controls or, for example, two feeders to be controlled. Usage information: HERE Scope of delivery: Relay board Accessories: Suitable housing is available separately Technical data Supply voltage: 24 V +/- 0.5 V Ambient temperature operation: +5°C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C Dimensions: 78x47x20 mm Weight: 45 g Maximum permanent current carrying capacity per power path (+24V, GND): up to 9 A (depending on cable cross section and environment) Screw terminals: Target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Cable cross section / maximum permanent current carrying capacity (maximum output power)(*) per path: 0.5 mm2 / 3 A 0.75 mm2 / NO: 6 A, NC: 5 A 1 mm2 - 2.5 mm2 / NO: 9 A, NC: 5 A *This information alone may not be used to dimension the cables. To do this, other conditions such as cable type, type of installation, cable routing, cable length, etc. must be taken into account. Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read these operating instructions completely before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III). Maximum permissible nominal value of the fuse is 10 A! This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Keep the usage information digitally or printed so that you can always access it. This product is only suitable for use in devices for apartment-like surroundings. Protect this product from electrostatic discharge to avoid damage. Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.

(Shipping only to: DE, PL) Description This product is designed for use in conjunction with WLED controllers V31 / V41 / V43 / V63 / V70. It allows the 5V LED strips to be switched off in the "off" state using a relay. This saves energy, increases the lifespan of LED strips and provides additional security. Two paths enable two separate controls or, for example, two feeders to be controlled. Usage information: HERE Scope of delivery Relay board Accessories Matching housing is available separately Technical data Supply voltage: 5 V +/- 0.1 V Ambient temperature operation: +5°C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C Dimensions: 78x47x20 mm Weight: 45 g Maximum permanent current carrying capacity per power path (+5V, GND): up to 9 A (depending on cable cross-section and environment)Screw terminals: Target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 6-7 mm / 8 mm Cable cross section / Maximum permanent current carrying capacity (maximum output power)(*) per path: 0.5 mm2 / 3 A (15 W) 0.75 mm2 / NO: 6 A (30 W), NC: 5 A (25 W) 1 mm2 - 2.5 mm2 / NO: 9 A (45 W), NC: 5 A (25 W) *This information alone may not be used to dimension the cables used. This requires other conditions, such as cable type, installation type, cable routing, cable length etc. be taken into account. Mandatory information:WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the string of lights or lighting system to be set up (including e.g. Selection of the power supply, the light chain, cable selection, any necessary fuse elements) and using relevant to establish electrical engineering standards. Incorrect or improper use can be dangerous. Please read this completely Operating instructions before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III). Maximum permissible nominal value of the fuse is 10 A! This product is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be ensured by a targeted design of the light chain or lighting system and, if necessary, by integration the safety elements can be avoided both during normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Keep the usage information digitally or printed so that you can always access it. This product is only suitable for use in devices for apartment-like surroundings. Protect this product from electrostatic discharge to avoid damage. Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.

Product DescriptionThis adapter serves as a receiver for LED data transmitted over long distances via RS485. The WLED RS485 Range Extender/DMX Adapter for WLED Controller (5-24V) can be used as a transmitter. For details, see the WLED RS485 Range Extender/DMX Adapter description.supply voltage: 5-24VMandatory informationWEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 MünchenWarningsThis product is intended for use by persons with relevant electrical engineering knowledge and experience.This product may only be operated with safety extra-low voltage (SELF) (protection class III).This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.Install and connect this product only when there is no voltage!We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage.Keep the usage information digitally or printed so that you can always access it.This product is only suitable for use in devices for apartment-like surroundings.Protect this product from electrostatic discharge to avoid damage.Any use other than that described in this usage information is not intended and will lead to warranty and disclaimer.

Description: Based on CH340G chip; Includes automatic reset (RST/IO0) control; Compatible with Arduino, PlatformIO, web based installers (https://wled-install.github.io/, https://install.wled.me/); Micro-USB socket; Pin compatible with WLED  V41 / V43 / V70 / V73 boards, just plug in and program; Scope of delivery: USB adapter (without cable) Mandatory information: WEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings: This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.

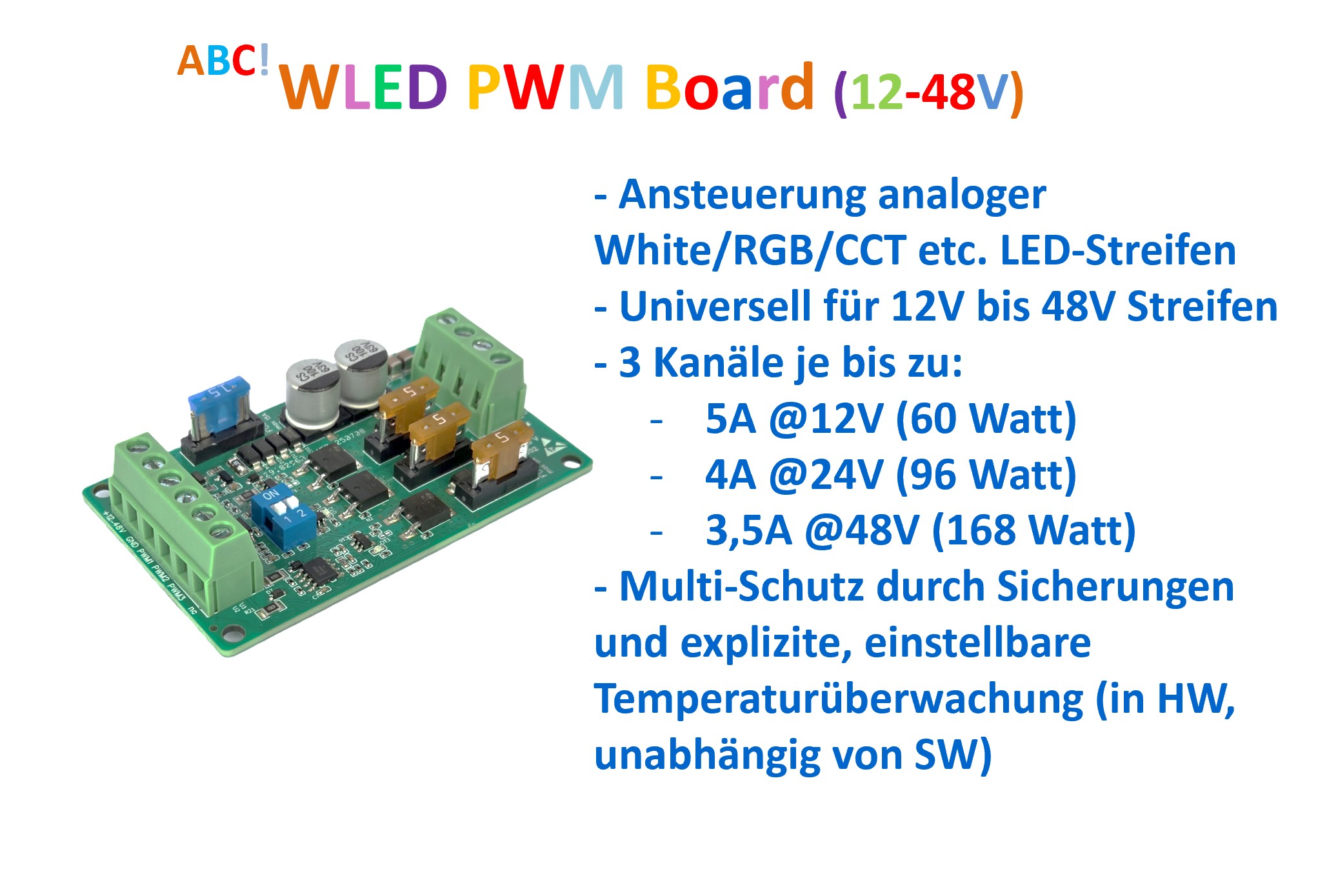

Product description This product is designed for use with WLED controllers. It allows for the control of analog LED strips (single-color, warm/cool white CCT strips, RGB strips, etc.). 12V to 48V LED strips are supported. MOSFETs are used for this purpose. The board also features numerous protection mechanisms through integrated fuses and thermal monitoring. Thermal monitoring is flexibly configurable with DIP switches and operates completely independently of the software, thus not being affected by potential software errors. Multiple boards can be used simultaneously to utilize more channels (e.g., for GRB CCT strips, etc.). Scope of delivery PWM board incl. 3x 5A and 1x 15A fuses (special type for up to 48V) AccessoriesSuitable housing is available separatelyTechnical data Supply voltage: 12 ... 48 V Input PWM control signal: 3.3V or 5V Ambient temperature operation: +5°C … +35 °C Ambient temperature storage/transport: -20 °C … 60 °C Dimensions: 78x47x26 mm Weight: 36 g Screw terminals, target torque: 0.4 Nm Screw terminals, cable cross section: 0.5 ... 2.5 mm2, rigid or flexible with wire end sleeve Screw terminals, stripping/sleeve length: 7-8 mm Maximum current carrying capacity: power Input (common for all channels): 15A; power output each channel: 5A (permanently at room temperature and free air convection; restrictions may apply at elevated room temperatures or heat build-up) Maximum recommended PWM frequency: 20 kHz Recommended current load per output: 5 A at 12 V (60 watts) and 20 kHz; 4 A at 24 V (96 watts) and 20 kHz; 3.5 A at 48 V (168 watts) and 20 kHz The maximum current carrying capacity is limited by losses. These consist of two components: Conduction losses Are higher at higher currents (proportional to the square of the current) Not dependent on the voltage or PWM frequency Switching losses Are higher at higher currents Are higher at higher voltages Are higher at higher frequencies In WLED, the typical PWM switching frequency when using ESP32-based controllers is approximately 20 kHz. Starting with WLED 0.15.x, it is possible to adjust the frequency. The "Normal" setting corresponds to approximately 20 kHz, and the "Very slow" setting to approximately 10 kHz. Settings “High” and “Very high” are not recommended: they do not provide any visual benefits but lead to unnecessarily high switching losses. Mandatory information WEEE Reg. No.: DE34359026 Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 München Warnings This product is intended for use by persons with relevant electrical engineering knowledge and experience. This means that the person must be able to correctly dimension the light chain or lighting system to be set up (including, for example, selection of the power supply, the light chain, cable selection, any necessary safety elements) and to set it up using relevant electrical engineering standards. Incorrect or improper use can be dangerous. Please read these operating instructions completely before setting up your fairy lights or lighting system. This product may only be operated with safety extra-low voltage (SELF) (protection class III). The maximum permissible nominal value of the fuses must be strictly observed! Individual areas of the circuit board and components can reach temperatures of up to 150°C during operation. Use a suitable housing. Thisproduct is not a toy! It must be kept out of the reach of children and must not be used as a toy. When connecting to the device terminals, please note the permitted cables and cross sections. Please note the technical data, especially the maximum current carrying capacity of the power path. Overloading can lead to the destruction of this product and/or a fire and must be avoided by carefully designing the light chain or lighting system and, if necessary, integrating the safety elements both in normal operation and in the event of a fault. Install and connect this product only when there is no voltage! Make sure the polarity is correct! We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage. Keep the usage information digitally or printed so that you can always access it. This product is only suitable for use in devices for apartment-like surroundings. Protect this product from electrostatic discharge to avoid damage. Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.

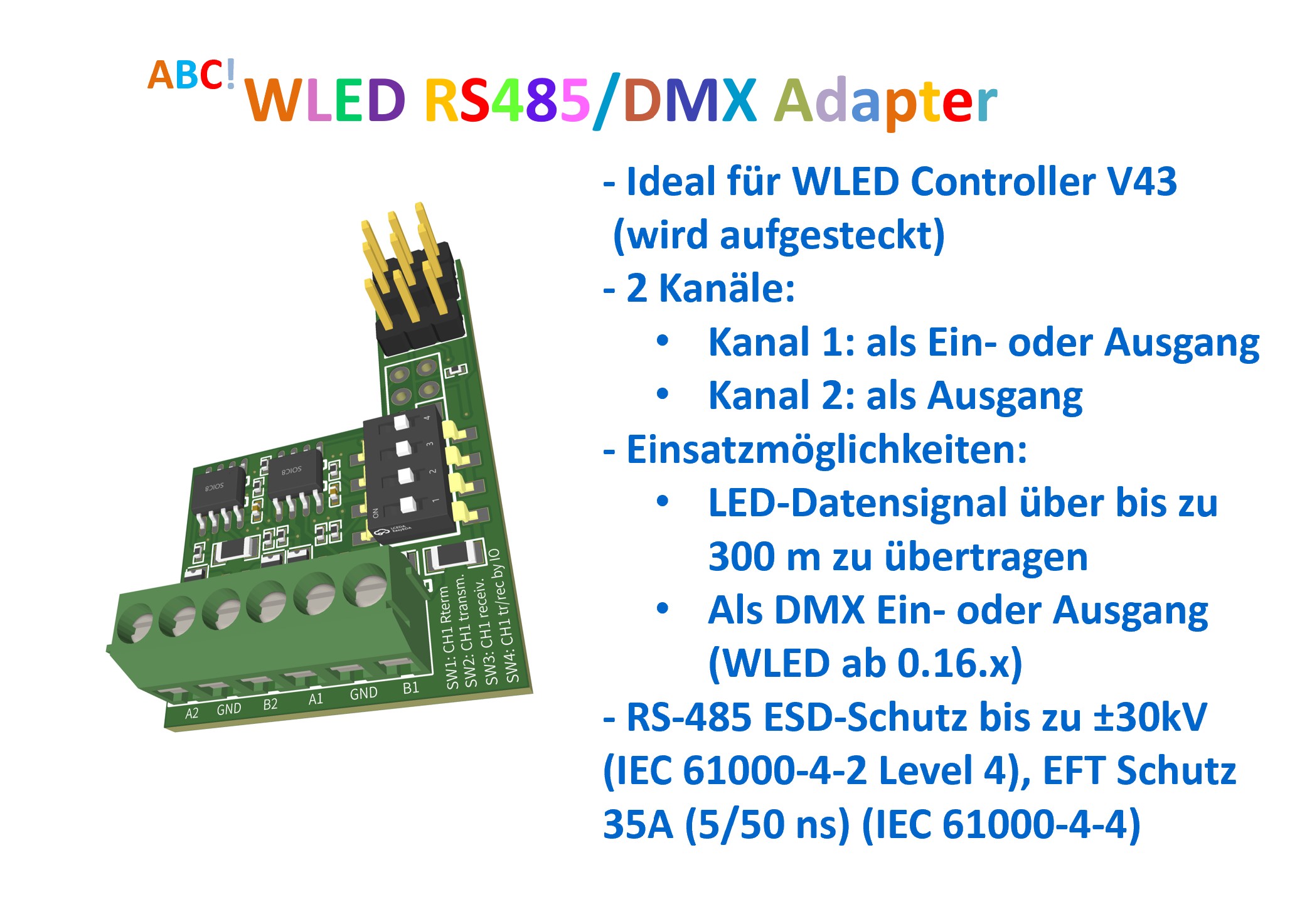

Product DescriptionThis adapter extends the ABC! WLED Controller (5-24V) V43 with two RS-485 interfaces. These can be used either as a so-called "long-range extender" to transmit the data signal to LEDs over long distances, or as DMX inputs or outputs (for DMX input WLED software version 0.16.x or higher or MoonModules required).The adapter can also be used with the ABC! WLED V73 mini controller (but with different GPIO settings!).The first channel can be used as an RS-485 transmitter or receiver (adjustable via DIP switches) and has a switchable 120-ohm termination resistor (via DIP switch). The second channel can only be used as a transmitter (output) and has a fixed 120-ohm termination resistor.Operation as a "Long Range Extender"Channel 1 and/or 2 can be usedLED data settings in WLED: GPIO 32 for channel 1, GPIO 14 for channel 2Ethernet or telephone cables, for example, can be used. Or simply a twisted pair.The tested transmission length is up to 300 meters.If the controller and LED strips are powered by different power supplies, a GND connection must also be established via transmission cables.An RS-485 range extender receiver (available in our shop) can be used on the LED sideDIP switch settings for channel 1: 1 & 2 ON, 3 & 4 OFFOperation as a DMX inputChannel 1 must be usedWLED version 0.16.x or higher, compiled with ESP-IDF V4 required. Currently only available as an Alpha/Nightly build. Available at https://wled-install.github.io/Recommended DIP switch settings: 1 ON, 2 OFF, 3 ON, 4 OFFWLED settings for DMX input: DMX RX: GPIO 36; DMX TX: GPIO 32; DMX EN: GPIO 15Note: The DMX specification requires that the receiver be galvanically isolated on the RS-485 interface to avoid ground loops. The adapter itself does not implement galvanic isolation. However, since LED strips used with WLED are powered by a galvanically isolated power supply, the entire controller, including the adapter and connected LEDs, is typically galvanically isolated from the AC mains and thus also from the DMX transmitter, and is only connected to it via DMX cables. This also prevents ground loops.Operation as a DMX outputChannel 1 must be usedWLED software must be compiled with the WLED_ENABLE_DMX option. Furthermore, the hard-coded GPIO 2 must be changed to GPIO 32. Use a ready-made WLED version with DMX out from https://wled-install.github.ioMandatory informationWEEE Reg. No.: DE34359026Manufacturer: MyHome-Control von Dr.-Ing. Wladislaw Waag, Wasserburger Landstr. 29, 81825 MünchenWarningsThis product is intended for use by persons with relevant electrical engineering knowledge and experience.This product may only be operated with safety extra-low voltage (SELF) (protection class III).This product is not a toy! It must be kept out of the reach of children and must not be used as a toy.Install and connect this product only when there is no voltage!We will be responsible for any damage to property or personal injury caused by improper use or non-observance of the hazard warnings no liability. In these cases, the warranty claim also expires! We assume no liability for consequential damage.Keep the usage information digitally or printed so that you can always access it.This product is only suitable for use in devices for apartment-like surroundings.Protect this product from electrostatic discharge to avoid damage.Any use other than that described in this usage information is not intended and will lead to warranty and Disclaimer.
